AT-R Standard
Multi-Sensor Equipment Monitoring Made Simple

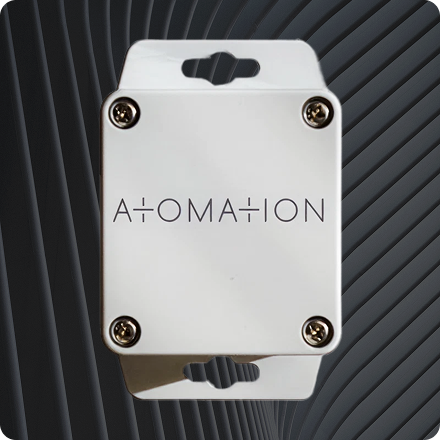

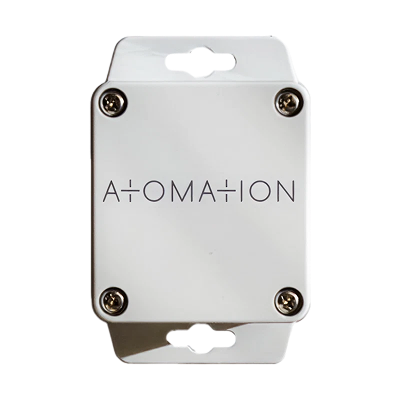

Transform your legacy equipment into smart, connected assets with the AT-R Standard Atom. This compact, weatherproof sensor combines accelerometer, temperature, and EMF monitoring in a single, battery-powered unit that installs in minutes with no programming or hard-wiring required.
Sensors
Monitor What Matters
Vibration & Movement
3-axis accelerometer detects vibration, tilt, impact, and angle changes up to 8G that is perfect for rotating equipment, pumps, motors, and machinery
Impact Monitoring
Know when your equipment takes an impact, even when no one is there to see it.

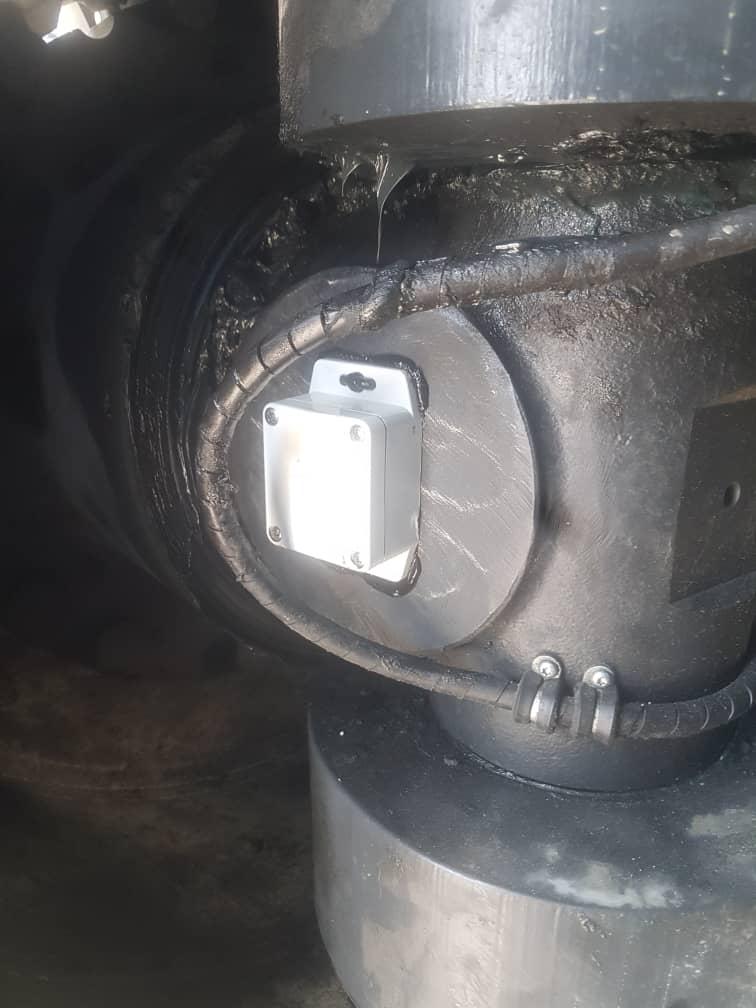

Temperature Monitoring
Precision temperature sensing (-40°F to +185°F) with custom high and low thresholds alerts you to overheating or freezing conditions before damage occurs
Tilt Monitoring
Know the moment a machine shifts out of position, before a misalignment becomes a failure.
EMF Monitoring
EMF sensor detects voltage presence/absence and readings in millivolts, confirming equipment power status and electrical anomalies
Our Difference
Built for Real-World Conditions
Your equipment doesn’t operate in a lab, and neither does the AT-R Standard.
NEMA 6P Rated
Fully sealed against dust, water jets, and temporary submersion
Outdoor Weatherproof
Operates in extreme temperatures from -40°F to +185°F
Flame Retardant Polycarbonate
Durable enclosure stands up to industrial environments
Compact & Lightweight
Just 2.28″ × 2.52″ × 1.38″ and 0.25 lbs and easily mounts where you need it
Smart Monitoring, Not Data Overload
Unlike traditional sensors that flood you with constant data streams, the AT-R Standard uses patented edge computing to learn what’s normal for your equipment. The Atom processes information locally and only alerts you when something’s wrong.
Exception-Based Intelligence
Self-calibrating sensors adapt to your equipment’s unique operational patterns
Custom thresholds for each sensing parameter
Text or email alerts only when equipment operates outside normal ranges
2 MB onboard memory stores data locally for reliable tracking
The Result? Extended battery life, reduced data costs, and alerts that actually matter.
Deploy in Minutes, Not Months
No Complex Programming. No Lengthy Implementations.
Step 1
Mount
Screw-mount to equipment using top and bottom flanges, magnets, zip ties or epoxy
Step 2
Configure
Use the Atomation app for one-touch setup or configure Atoms directly in the dashboard
Step 3
Monitor
Immediately begin capturing equipment performance data
Bluetooth Low Energy 5 (2.4 GHz) communicates with Atomation Gateways which are also battery powered
AA lithium battery (3.6V) provides long-lasting power
No hard-wiring to centralized systems required
Use Cases
Real-World Use Cases
The AT-R Standard’s combination of vibration, temperature, and electrical monitoring makes it the ideal solution for diverse industrial applications:
Aggregates & Mining

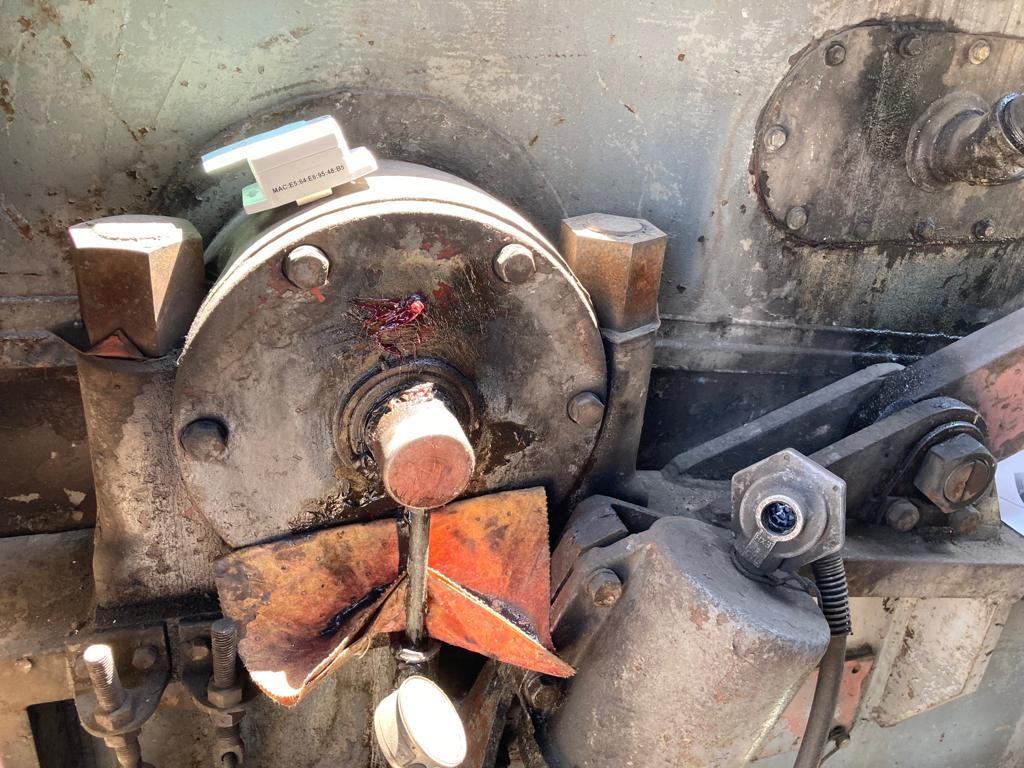

Motor & Bearing Monitoring
Detect bearing wear, misalignment, and imbalance before catastrophic failure. The accelerometer identifies abnormal vibration patterns while temperature sensing catchesoverheating conditions.
Shaker Tables & Screeners
Track vibration signatures to detect screen and motor degradation before failure occurs. Temperature monitoring on motor bearings provides early warning of over-lubrication or bearing wear, giving operators time to schedule maintenance rather than react to a breakdown.
Crushers & Rock Processing
Monitor primary and secondary crushers for abnormal vibration patterns that signal wear, misalignment, or material blockages. Temperature sensing on crusher motors catches overheating before it causes unplanned downtime in the most critical stage of your operation.
Facilities Management
HVAC Equipment
Monitor rooftop units, chillers, and air handlers for fan imbalance, bearing wear, and motor overheating. Exception-based alerts mean you only hear from the system when maintenance is needed.
Backup Generators
Ensure critical backup power systems are ready when needed. Vibration monitoring detects engine problems during test runs, temperature sensing alerts you to cooling system issues.
Boilers & Water Heaters
Temperature monitoring prevents overheating and identifies efficiency problems. Vibration detection catches pump issues before they escalate.
Manufacturing & Production
Motor & Bearing Monitoring
Detect bearing wear, misalignment, and imbalance before catastrophic failure. The accelerometer identifies abnormal vibration patterns while temperature sensing catchesoverheating conditions.
Conveyor Systems
Monitor belt tension through vibration analysis, track motor temperature under varying loads,and verify electrical power to drive systems.
Compressors & Pumps
Identify cavitation, impeller damage, and seal failures through vibration signatures. Temperature thresholds alert you to cooling system problems.
Facilities Management
HVAC Equipment
Monitor rooftop units, chillers, and air handlers for fan imbalance, bearing wear, and motor overheating. Exception-based alerts mean you only hear from the system when maintenance is needed.
Backup Generators
Ensure critical backup power systems are ready when needed. Vibration monitoring detects engine problems during test runs, temperature sensing alerts you to cooling system issues.
Boilers & Water Heaters
Temperature monitoring prevents overheating and identifies efficiency problems. Vibration detection catches pump issues before they escalate.
Infrastructure & Utilities
Pump Stations
Monitor remote lift stations and water/wastewater pumps without site visits. Long battery life and wireless communication eliminate the need for power and data infrastructure.
Electrical Panels & Switchgear
Temperature monitoring provides early warning of hot connections and overloaded circuits. Tilt detection alerts you to vandalism or seismic activity.
Cooling Towers
Monitor fan motors for imbalance and bearing wear. Vibration analysis identifies structural issues and component degradation in harsh, high-humidity environments.
Energy & Mining
Conveyor & Material Handling
Monitor critical conveyor systems for bearing wear, belt misalignment, and motor problems. The rugged, weatherproof design withstands dust, vibration, and extreme temperatures.
Infrastructure & Utilities
Pump Stations
Monitor remote lift stations and water/wastewater pumps without site visits. Long battery life and wireless communication eliminate the need for power and data infrastructure.
Electrical Panels & Switchgear
Temperature monitoring provides early warning of hot connections and overloaded circuits. Tilt detection alerts you to vandalism or seismic activity.
Cooling Towers
Monitor fan motors for imbalance and bearing wear. Vibration analysis identifies structural issues and component degradation in harsh, high-humidity environments.
Energy & Mining
Conveyor & Material Handling
Monitor critical conveyor systems for bearing wear, belt misalignment, and motor problems. The rugged, weatherproof design withstands dust, vibration, and extreme temperatures.
Accelerometer
- 3-axis (XYZ), up to 8G range
- Vibration (SD, G), Tilt (°), Impact (G)
- Angle self-calibration, custom thresholds
Temperature
- Range: -40°C to +85°C / -40°F to +185°F
- Accuracy: ±0.4°C / ±0.72°F
- High/low temp threshold alerts
EMF
- Voltage reading (mV)
- Presence/absence detection
- Custom thresholds
External Sensors
- Connection available for additional sensors
Dimensions
2.28″ × 2.52″ × 1.38″ (57.91 × 64.01 × 35.05 mm)
Weight
0.25 lb (0.11 kg)
Enclosure
NEMA 6P polycarbonate (outdoor, weatherproof, flame retardant)
Installation
Screw-mounted (top & bottom flanges)
Battery
AA-size lithium, 3.6V
Expected Life
Up to 3 years (depending on usage)
Wireless
Bluetooth Low Energy 5, 2.4 GHz
Range
Up to 100m line of sight
Memory
2 MB flash (SPI interface)
Why Choose the AT-R Standard?
Versatile
Multiple, built-in sensors make this the go-to solution for comprehensive equipment monitoring
Reliable
Built to survive the harshest industrial environments with NEMA 6P protection
Intelligent
Edge computing means smarter alerts and longer battery life
Scalable
Add more Atoms easily and cost-effectively. You can monitor entire facilities from a single dashboard.
Simple
No programming expertise required. If you can use a smartphone app, you can deploy Atoms.
Pumps and motors
HVAC equipment
Compressors
Conveyor systems
Manufacturing machinery
Generator monitoring
Any equipment where vibration, temperature, and electrical status are critical
Ready to Add Your Equipment to the IoT?
The AT-R Standard Atom brings enterprise-grade monitoring capabilities to equipment that was never designed to be “smart.” Transform your maintenance strategy from reactive to predictive—without the complexity and cost of traditional SCADA systems.
