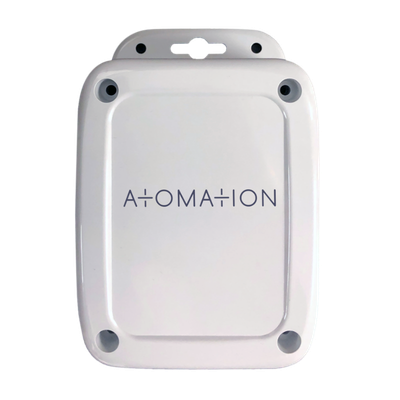

GW-RC Gateway
Cloud Connectivity Without the Infrastructure
Bridge the gap between your wireless Atoms and cloud-based monitoring with the GW-RC Gateway. This battery-powered hub eliminates the need for power outlets, ethernet cables, or WiFi networks and connects your entire monitoring ecosystem to the cloud via cellular communication, anywhere you need it.
Wireless Hub, Zero Infrastructure
Deploy Monitoring Networks in Minutes
The GW-RC Gateway solves the biggest challenge in remote equipment monitoring: getting data from the field to the cloud without complex infrastructure. Unlike traditional gateways that require power and network connectivity, the Atomation Gateway operates completely independently.
Bluetooth Low Energy Communication
Connects to multiple Atoms via BLE 5 (2.4 GHz) with range up to 800 meters line-of-sight, creating a local monitoring network without cables or repeaters
LTE Cat-M1 Cellular
Transmits aggregated data from all connected Atoms directly to the cloud using cellular communication, eliminating dependency on local networks or internet access
Battery-Powered Operation
3-year battery life under typical conditions means no power infrastructure required. Deploy on remote pump stations, rooftops, or anywhere equipment monitoring is needed.
GPS Location Services
Built-in GPS automatically establishes location for the Gateway, providing asset area location capabilities without manual configuration
The Result
Deploy complete monitoring networks in locations where traditional systems simply can’t go with no trenching for power, no IT infrastructure requirements, and no ongoing subscription costs.
Built for Industrial Reality
Deploy Anywhere Your Equipment Lives
Remote equipment doesn’t come with convenient power outlets and network jacks. The GW-RC Gateway is engineered for real-world industrial deployment.
NEMA 6P Rated Enclosure
Fully sealed polycarbonate housing protects against dust, water jets, and temporary submersion and is perfect for both indoor and outdoor installation
Extreme Temperature Operation
Functions reliably from -58°C to +85°C (-72°F to +185°F), handling desert heat, arctic cold, and everything in between
No External Power Required
Battery-powered design eliminates the single biggest deployment constraint for remote monitoring. Gateways can be installed anywhere without requiring external power.
Industrial Installation
Mounting design allows quick installation on equipment housings, building exteriors, or any location where your assets need monitoring
Compact & Rugged
146mm × 87mm × 57mm (5.75″ × 3.43″ × 2.24″) form factor withstands industrial environments while maintaining a small footprint
Deploy Networks, Not Just Sensors
Deploy Monitoring Networks in Minutes
The Atomation Gateway intelligently manages your monitoring network to maximize efficiency and battery life.
Multi-Atom Connectivity
Supports numerous Atoms simultaneously, with the optimal number determined by your use case, event frequency, and data consumption patterns
Exception-Based Communication
Works seamlessly with Atomation’s patented edge-computing architecture. Atoms process data locally and only transmit when thresholds are exceeded, minimizing cellular data usage and extending battery life across the entire network.
Automatic Cellular Connection
Self-configures on deployment, automatically searching for and establishing the strongest available cellular signal with immediate dashboard confirmation
Centralized Configuration
Link Atoms to the Gateway through the online dashboard with no field programming or complex setup procedures required
Low Battery Monitoring
The Gateway actively tracks its own battery status, sending alerts before replacement is needed to prevent service interruption
The Result
An intelligent wireless network that manages itself, conserves power, and delivers actionable information when it matters, all without IT support.
No Complex Installation. No Infrastructure Requirements.
01
Mount
Attach to equipment or structures using mounting hardware or the optional magnetic base
02
Activate
Review settings via the Atomation dashboard
03
Link Atoms
Assign Atoms to the Gateway through simple dashboard configuration
04
Monitor
Immediate cloud connectivity provides visibility to all connected equipment
Complete Wireless Freedom
- Battery-powered Gateway eliminates power infrastructure needs
- Cellular communication bypasses local networks and IT requirements
- Bluetooth connectivity to Atoms creates cable-free monitoring networks
Configuration in Minutes
- Activate Atoms using the Atomate It! app
- Register Gateway in online dashboard
-
Link Atoms to Gateway through dashboard interface
- Gateway automatically establishes connections and begins data transmission
Technical Specifications
Enabling Monitoring Where Infrastructure Doesn’t Exist
The battery-powered, cellular-connected Gateway unlocks monitoring capabilities in locations where traditional systems can’t reach:
Communication & Connectivity
Bluetooth
Bluetooth Low Energy 5, 2.4 GHz
BLE Range
Up to 800 meters line-of-sight (environment dependent)
Cellular
LTE Cat-M1 for direct cloud communication
GPS
Built-in GPS for automatic location services
Atom Capacity
Supports numerous Atoms (varies by use case and data volume)
Physical & Power
Dimensions
146mm × 87mm × 57mm (5.75″ × 3.43″ × 2.24″)
Enclosure
NEMA 6P polycarbonate (outdoor, weatherproof, sealed)
Operating Temperature
-58°C to +85°C / -72°F to +185°F
Battery Life
5 years under typical conditions
Installation
Screw-mounted, zip ties, or optional magnetic base
Power
Battery-powered (no external power required)
Data & Management
Data Transmission
Exception-based from Atoms via cellular to cloud
Configuration
Cloud-based dashboard management
Monitoring
Cellular connection status and battery level alerts
Alert System
Built-in GPS for automatic location services
Ready to Deploy Monitoring Anywhere?
The GW-RC Gateway transforms impossible monitoring scenarios into simple deployments. Connect legacy equipment to the cloud without the constraints of traditional infrastructure. Atomation Gateways deploy in remote fields, on rooftops, or anywhere your equipment lives.
