Atoms

Products & Specifications
Add Legacy Devices to the IoT

No Complex Programming | No Lengthy Implementations



Atoms are small, battery-operated wireless sensors with patented computing and memory capabilities. Atomation’s secret is the powerful edge computing capabilities that allow Atoms to recognize normal operational behavior for any device. Atoms continuously monitor and process information locally, instead of sending a constant stream of data back to a central system. When thresholds are exceeded or your equipment is acting outside of normal, Atoms send information, notifying you of problems before your equipment fails.

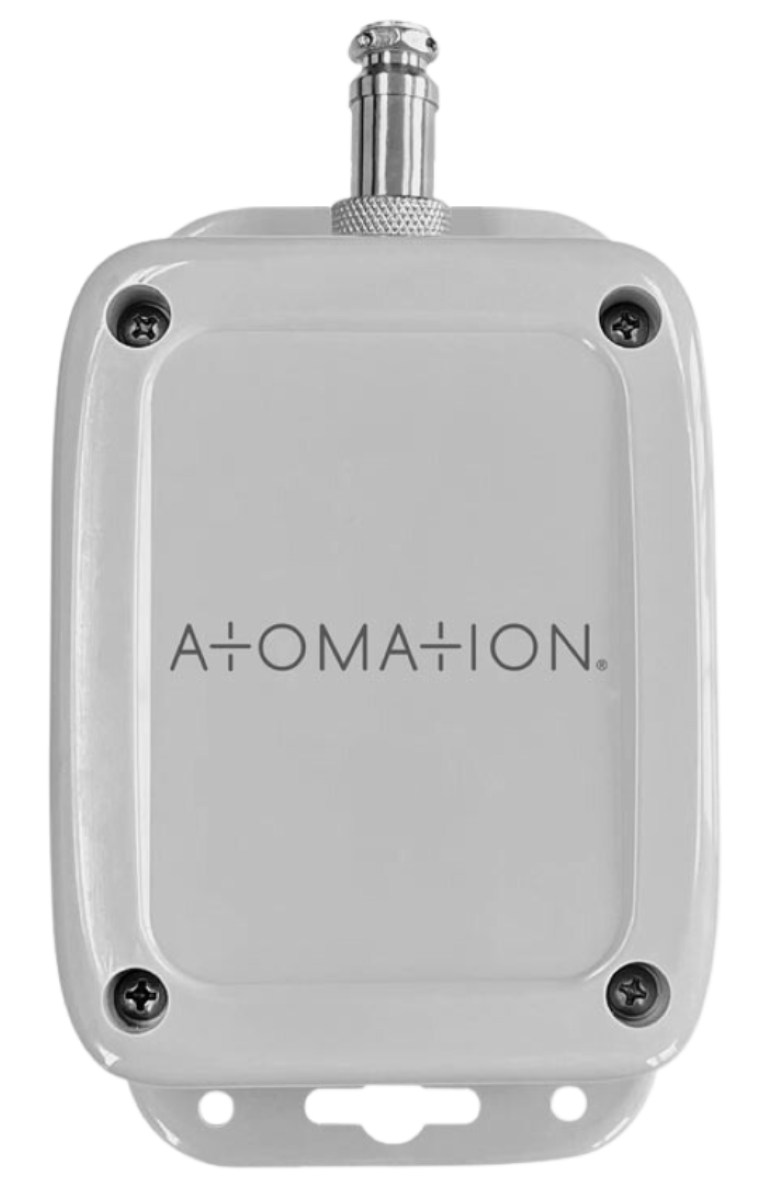

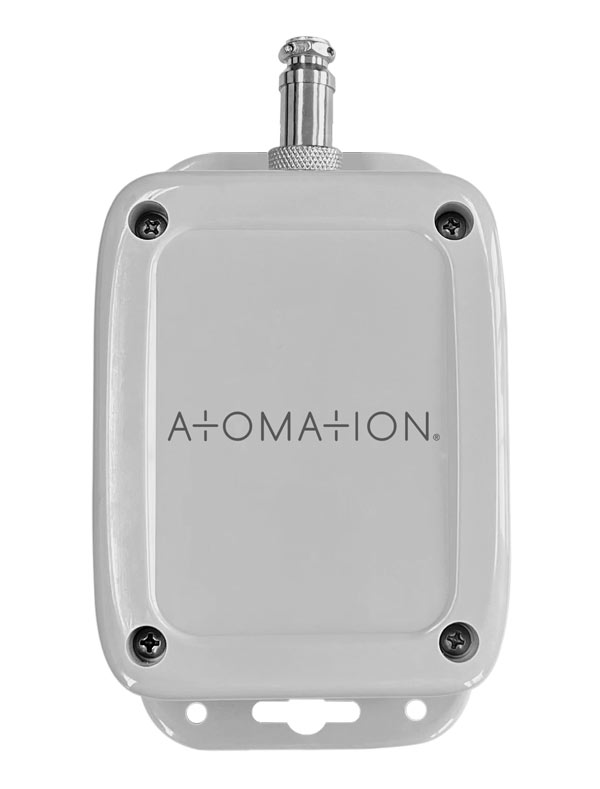

AT-U2.0c with External Sensor Support

The stand-alone unit with external sensor support is the perfect addition to your condition monitoring plan. With onboard sensors for temperature, tilt, vibration, impact and EMF, the AT-U2.0c gives users the ability to add up to (4) 4-20 mA sensors to augment their monitoring program. Monitor external temperatures, flow, air inputs and outputs – any 4-20mA sensor is supported by this platform – and add either new or existing sensors to our dashboard and reporting tools. High-frequency sampling is also available when using the optional external power supply.

Computing Power: CPU and Flash Memory
Sensors: Temperature, 3-Axis Acceleromter, Vibration, Impact, EMF
External Sensor Support: Connect up to (4) 4-20mA Sensors
Wireless Communication: Bluetooth Low Enegery and LTE CAT-M1 Cellular
Battery Life: 5 years under optimal conditions
Optional Power Supply: Up to 5V
Installation: Screw-mounted
Size: 146mm x 87mm x 57mm



Download Specifications

Click here to download AT-U 2.0c Specifications

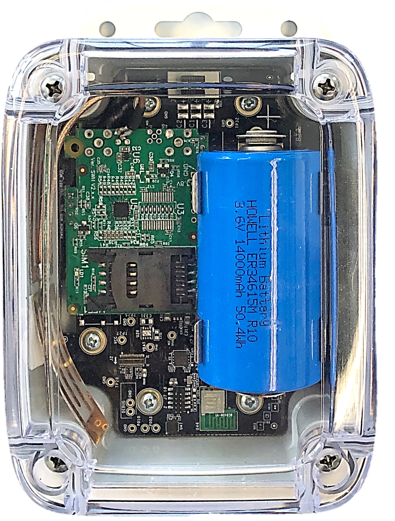

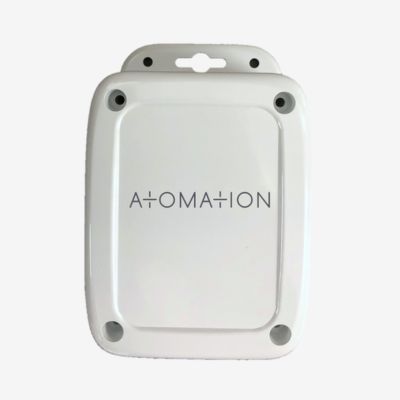

GW-R 1.0c

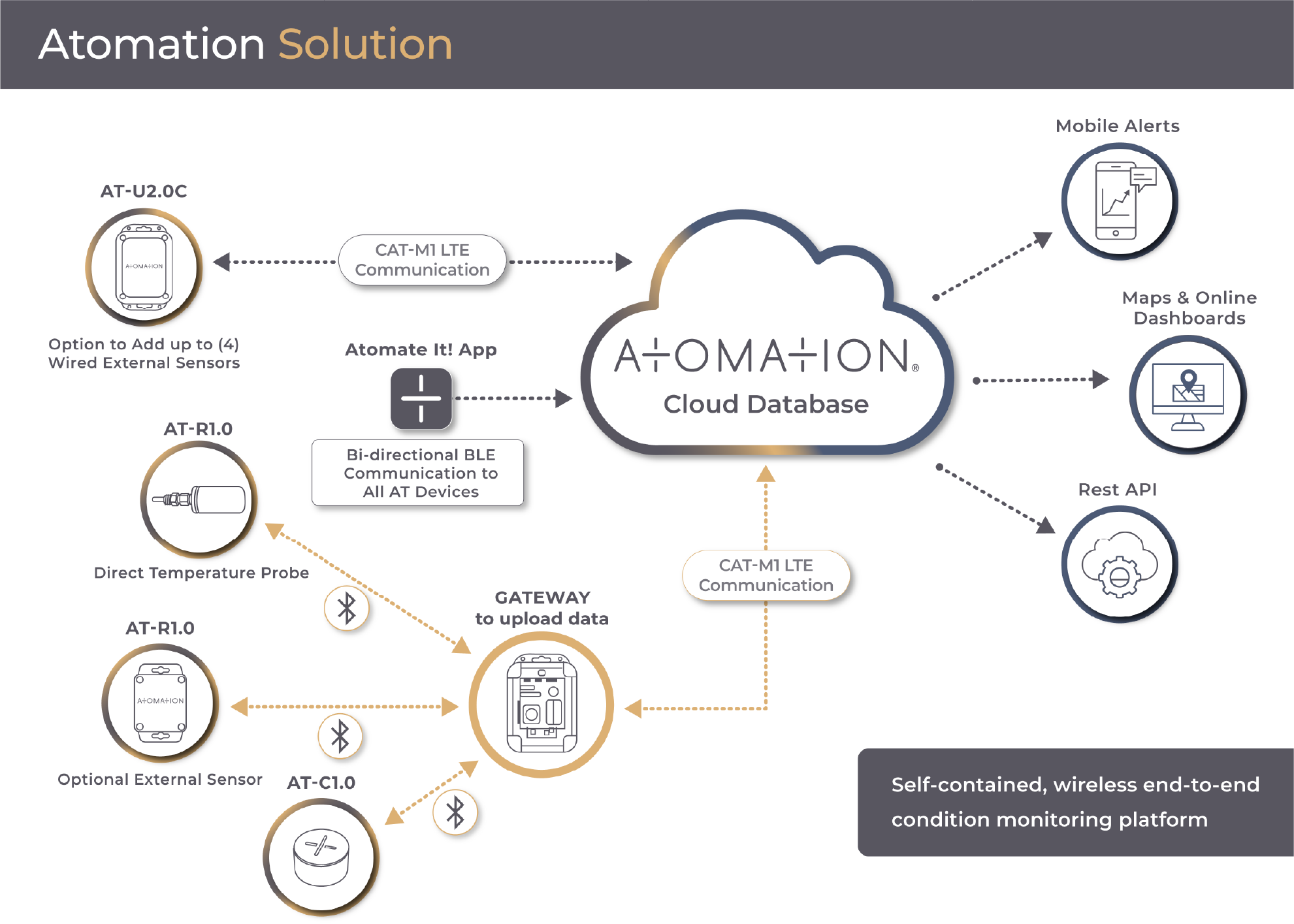

Conveniently connect to the cloud with the Atomation Gateway. The GW-R1.0C communicates wirelessly with all Atoms sending data to the cloud using LTE Cat-M1 cellular communication. The battery-operated Atomation Gateway has a rugged NEMA 6P rated exterior casing that protects the device in outdoor environments.

Wireless Communication: LTE CAT-M1 Cellular and Bluetooth Low Energy
Battery Life: 5 years under optimal conditions
Installation: Screw-mounted
Size: 146mm x 87mm x 57mm



Download Specifications

Click here to download  GW-R 1.0C Specifications

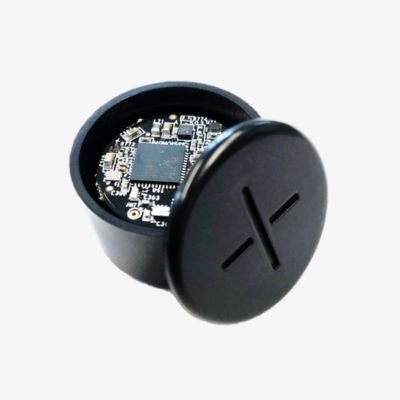

AT-C 1.0

AT-C 1.0 Atoms are simple add-on devices that use vibration and temperature to build a specific profile to monitor any machine, understand usage and identify abnormalities. These Atoms are self-contained, battery-powered devices that use wireless communication to send users actionable information and usable data.

Computing Power: CPU and Flash Memory
Sensors: 3-Axis Accelerometer, Vibration, Temperature, Impact
Wireless Communication: Bluetooth Low Energy
Battery Life: 2 years under optimal conditions
Installation: Magnetic
Size: Diameter 28.5mm Height 17.7mm



Download Specifications

Click here to download AT-C 1.0 Specifications

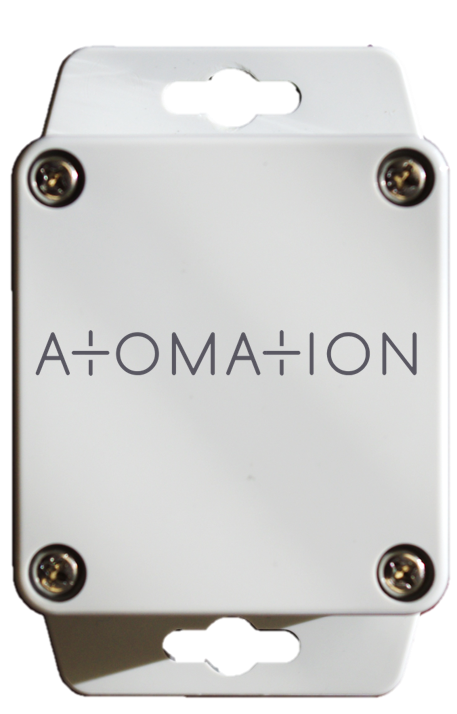

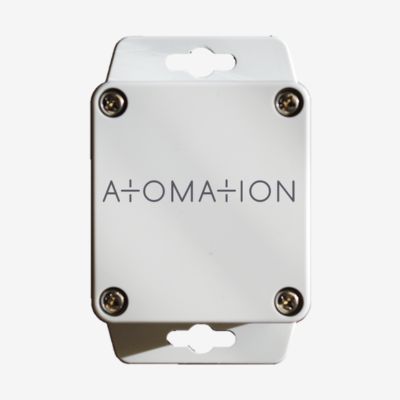

AT-R 1.0

Quickly and simply add existing objects to the IoT in any environment.  AT-R 1.0 Atoms extend the platform and identify equipment issues with sensors that monitor temperature, vibration, tilt, EMF and provide a connection to external sensors.

Computing Power: CPU and Flash Memory
Sensors: 3-Axis Accelerometer, Vibration, Temperature, Impact, EMF, Connection to External Sensors
Wireless Communication: Bluetooth Low Energy
Battery Life: 3 years under optimal conditions
Installation: Screw-mounted
Size: 57.91mm x 64.01mm x 35.05mm



Download Specifications

Click here to download AT-R 1.0 Specifications
